CCS_SHB20

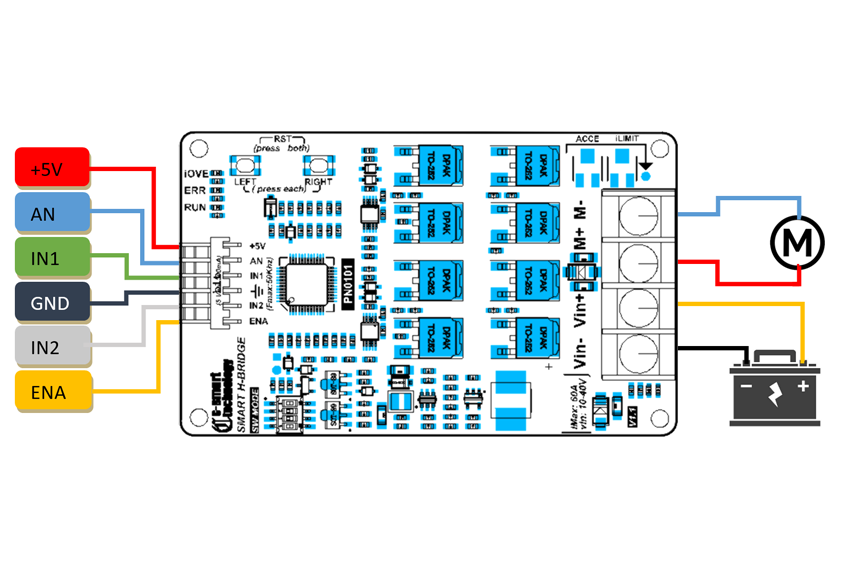

Introduction:

• The driver is H-Bridge Driver which is designed to control a brushed DC motor about the Velocity, Direction... The Motor is controlled by MOSFETs with 16 Khz switching to optimum performance and noise.

• Acceleration/Deceleration: The driver is a Smart H-Bridge Driver which supports the Acceleration/Deceleration feature. This feature will help protect the Electric, Mechanical…It will useful for many applications.

• Electric Current Home Sensors: The driver also supports two Electric Current Home Sensors inside to limit the moving left and right. The user doesn’t need to add more extended limit switches. This driver will monitor the current when the Motor running, if the current of the Motor same as with the iLimit (iLimit is a current limit setting by a potentiometer in PCB), the driver will set a Touched Flag and stop moving in that direction. To move, the driver needs control by reverse direction or the Touched Flag need to be clear.

• The driver supports many protection methods such as Under voltage, Over voltage, Over temperature, Over Current. These protecting features are very important witch help to keep the protection system.

Application:

• DC/DC Servo Control.
• Automation, robot, CNC.
• Mechanical, Car...

Demo with RC in independent mode:

Demo with RC in mixed mode:

Analog Joystick (Analog Bi-Direction) Mode (Same as CCS_SHB20):
